PRODUCT INTRODUCTION

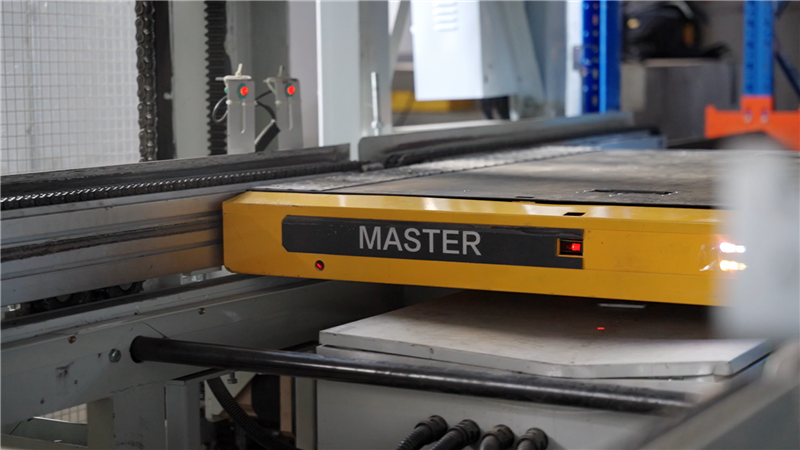

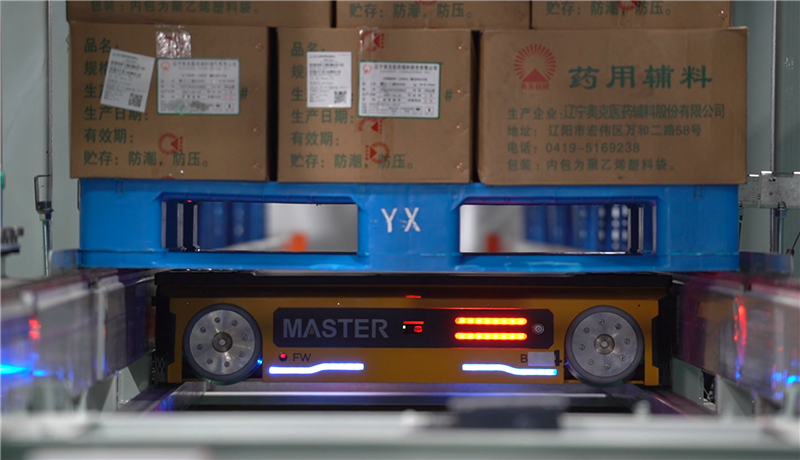

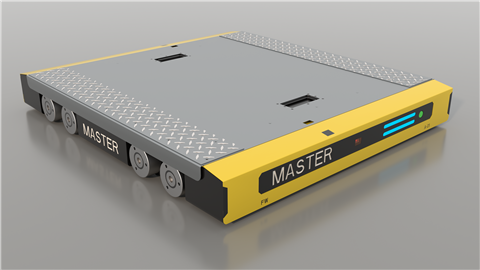

Four-way Shuttle

Tianjin Master four-way shuttle car, in the field of intelligent storage precipitation for many years, excellent enterprise strength and professional technical ability, is committed to providing high-quality intelligent innovative packaging and storage equipment four-way shuttle car, suitable for a variety of industry application scenarios.

High-level and high-precision automation

Centralized control and management of the equipment

Improve operational efficiency and safety

PRODUCT HIGHLIGHTS

Fast Response

Install laser detection sensor, autonomous obstacle avoidance, realize multiple vehicles in the same layer; 90° rail switch, sensitive and stable response

Lower Cost

Independent research and development + manufacturing, controllable cost; low energy consumption, low continuous cost

Efficient Operation

The same layer of multiple shuttle, efficient operation; 3D real-time system, voice control instead of the keyboard

Stable Battery Life

Adopt graded current value charging technology for quick charging at-25 degrees; built-in wireless receiving device supports no signal operation in the roadway

PROJECT CHARRACTEISTICS

Extremely Efficient

No-load speeds up to 1.5 m/s

Up-load speed up to 1.2 m/s

No-load acceleration can reach 0.4 m/s

Up-load acceleration up to 0.3 m/s

The response is sensitive

Super Battery Life

Working hours could continue for 8-10 hours

Charging time is 2 hours

Battery capacity is 48V / 50 AH

Low energy consumption

Hyperstable

Long service life

Signal stability

Core components adopt big brands

Adopt online automatic

single-machine manual double control mode

Super Safe

Laser detection sensor, autonomous obstacle avoidance

Equipped with fire-proof and explosion-proof facilities

Equipped with abnormal return to the origin and abnormal alarm functionAdopt the pattern s

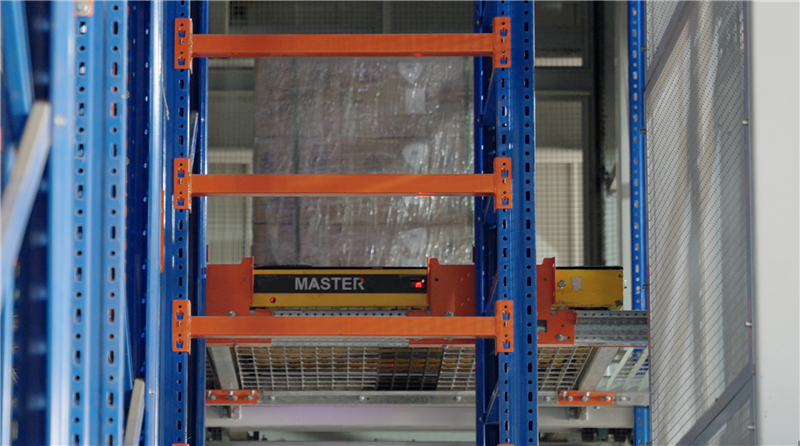

APPLICATION SCENARIOS

Multiple Types

New warehouse, transform warehouse, rule warehouse, irregular warehouse

Multifunctional

Intensive storage, cache and picking, transportation and handling

Multi-Temperature Area

Refrigeration environment, freezing environment, normal operation

Multiple Industries

Food cold chain, intelligent manufacturing, pharmaceutical industry, e-commerce retail
